2.5 Times Rated Voltage X2 Safety Capacitor 0.15UF275V
Radial package type with high surge voltage protection, meeting air conditioning safety regulations.
Product Specifications
| Attribute |
Value |
| Lead Wire Length |
15mm |
| Product Name |
X2 Safety Capacitor |
| Size |
P10 15 22.5 7.5MM |
| Mounting Type |
Through-Hole |
| Rated Frequency |
50/60Hz |
| Insulation Resistance |
≥ 10,000MΩ |
| Rated Voltage |
310VAC |
| Package Type |
Radial |
| Rated voltage |
Usually 275VAC (suitable for 220V AC systems) or 310VAC (higher specifications), and can withstand instantaneous pulse voltages of 2.5kV~4kV. |
Product Description
The X2 Safety Protection Capacitor is a vital component that ensures safety and reliability in various electronic devices and equipment. Manufactured using high-quality materials and advanced technology, this capacitor offers superior performance and protection against electrical surges.
With a rated surge voltage of 2.5 times the rated voltage, the X2 Safety Protection Capacitor offers robust protection against sudden voltage spikes and electrical disturbances. This ensures the safety of the connected equipment and prevents damage due to power surges.
Key Features
- X2 Safety Capacitor
- Lead Wire Material: Tinned Copper
- Insulation Resistance: ≥ 10,000MΩ
- Operating Temperature Range: -40°C To +85°C
- Capacitance Tolerance: ±20%
Technical Parameters
| Parameter |
Value |
| Lead Wire Material |
Tinned Copper |
| Capacitance Tolerance |
±20% |
| Rated Voltage |
310VAC |
| Rated Surge Voltage |
2.5 Times Of Rated Voltage |
| Operating Temperature Range |
-40°C To +85°C |
Applications
The X2 Safety Capacitor is ideal for various applications where space is limited, such as in power supplies, consumer electronics, and industrial equipment. Its dielectric strength of 1600VAC ensures reliable performance even in high-voltage environments.
Customization Options
We offer Product Customization Services to meet your specific requirements:
- Brand Name: SLFCF
- Place of Origin: China
- Dissipation Factor: ≤ 0.1%
- Capacitance Range: 0.001uF - 4.7uF

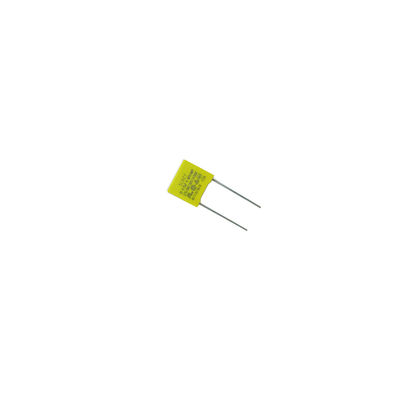

Product Image
Frequently Asked Questions
Q: What is the brand name of this Safety Capacitor?
A: The brand name of this Safety Capacitor is SLFCF.
Q: Where is this Safety Capacitor manufactured?
A: This Safety Capacitor is manufactured in China.
Q: What is the voltage rating of the X2 Safety Capacitor?
A: The X2 Safety Capacitor has a voltage rating of 310VAC.
Q: Is the X2 Safety Capacitor suitable for use in household appliances?
A: Yes, the X2 Safety Capacitor is suitable for use in household appliances.
Q: Does the X2 Safety Capacitor meet safety standards?
A: Yes, the X2 Safety Capacitor meets industry safety standards.
